Brand Name BAFANG

Voltage 36V

Design Brushless

Wattage 301 - 400w

Motor Type Side Hung Motor

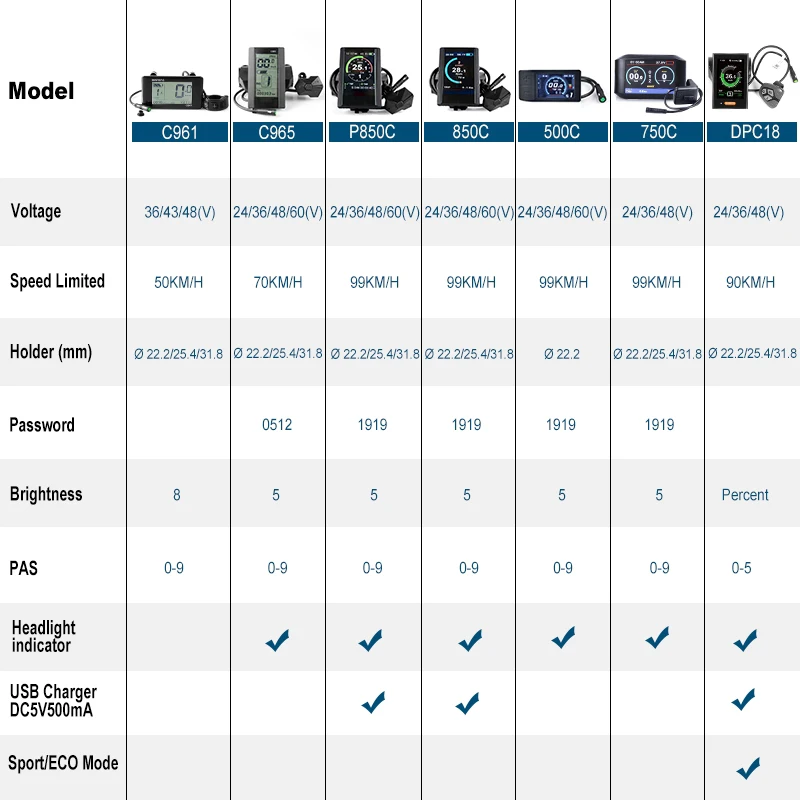

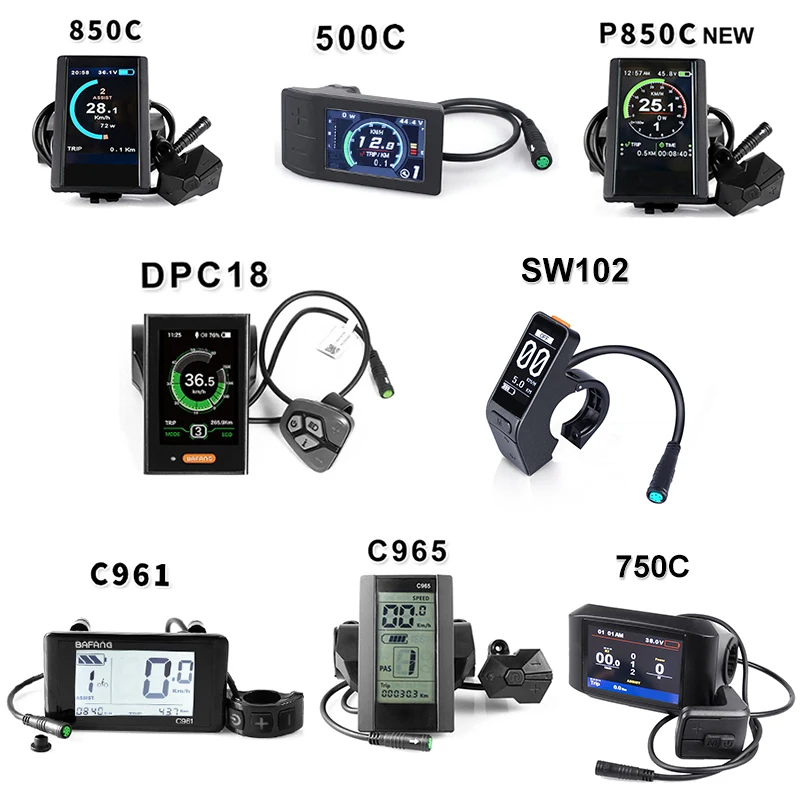

Bafang display C965 / 850C NEW /500C

Bafang Waterproof Rate IP65

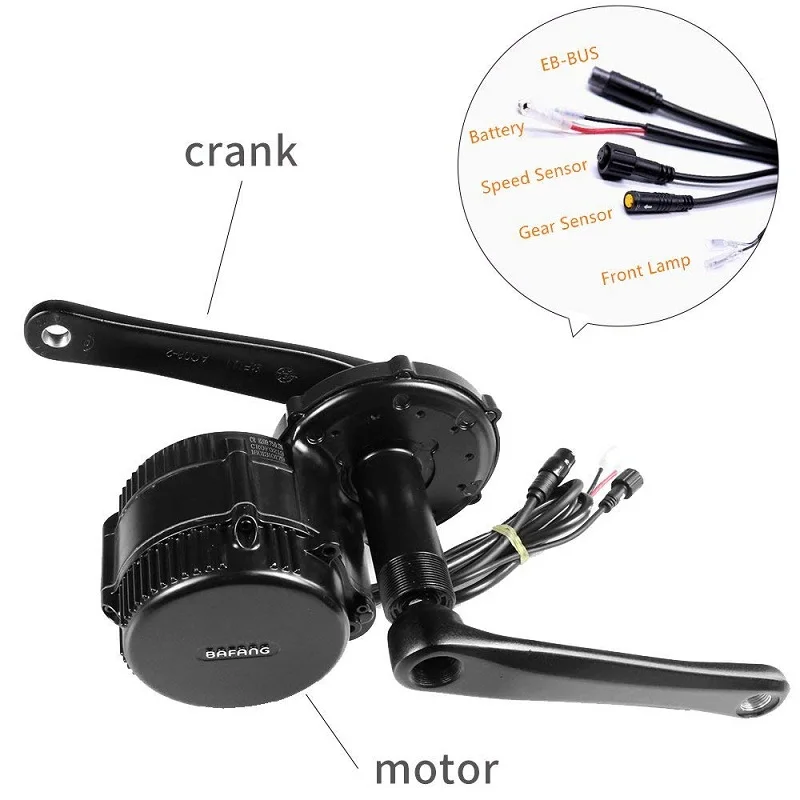

Bafang Motor type 36V 350W BBS01B

Chainwheel 44T/46T/48T/52T

Motor/Engine Weight 4.24 Kg

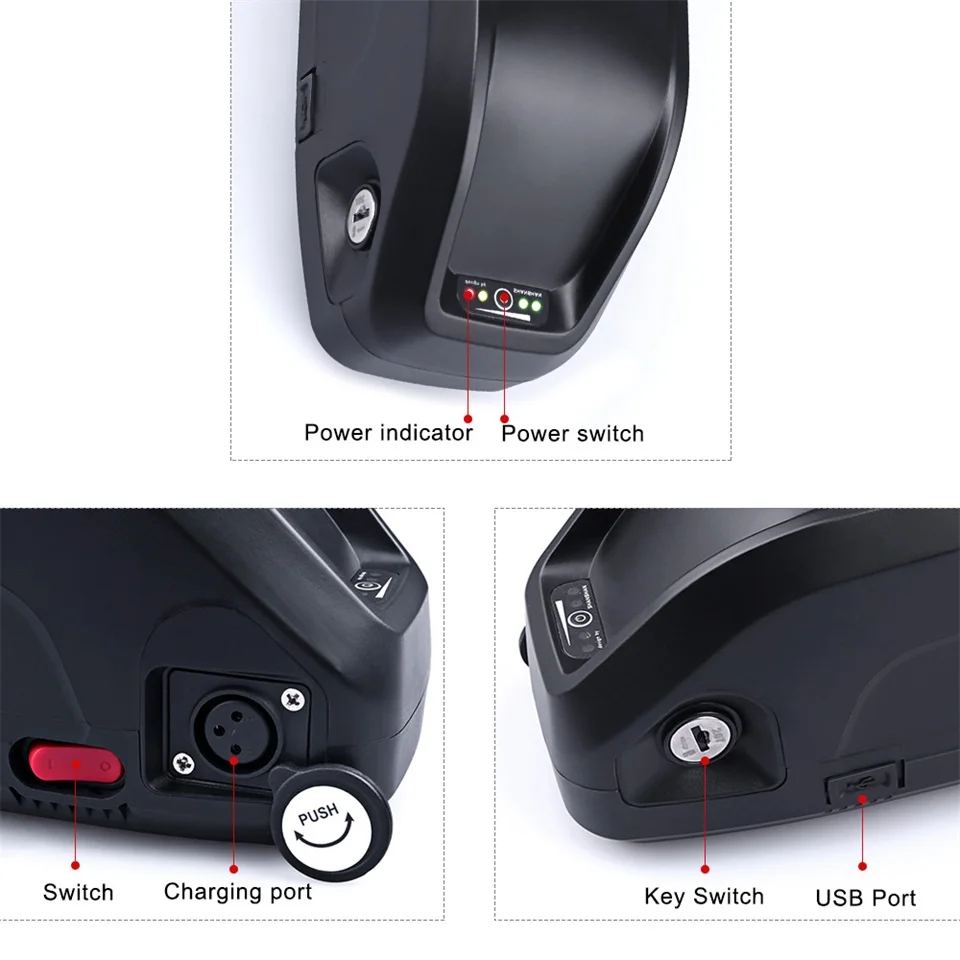

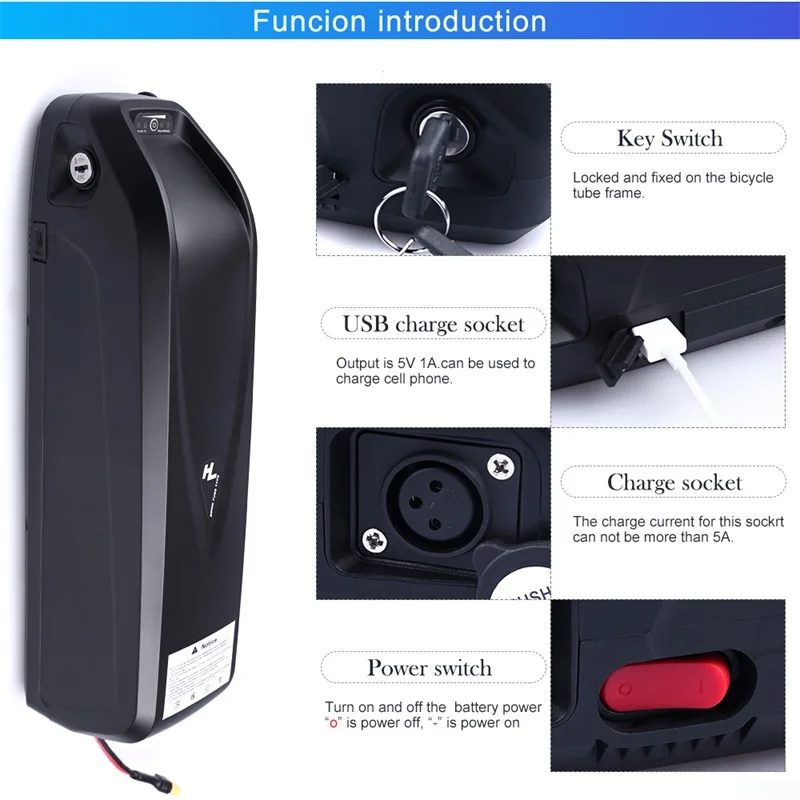

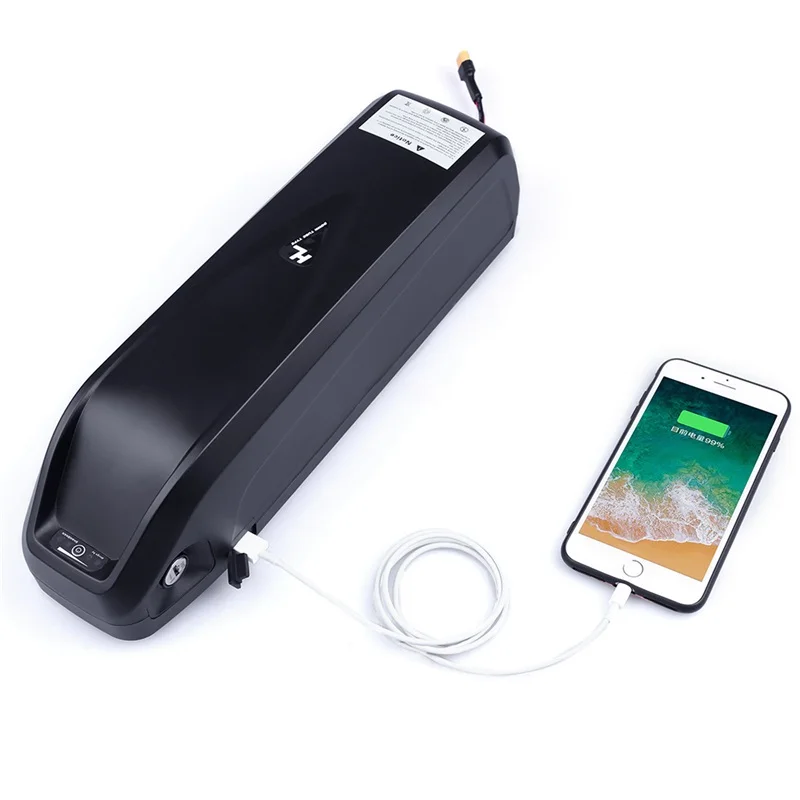

Battery 17.4Ah Built in Samsung Cells

Battery Case Material ABS+Aluminium alloy

Battery Size 9*11*37 cm 3.5*4.3*14.5 inch

Battery Weight 3.3 Kg

Motor Battery Warranty Time One Year

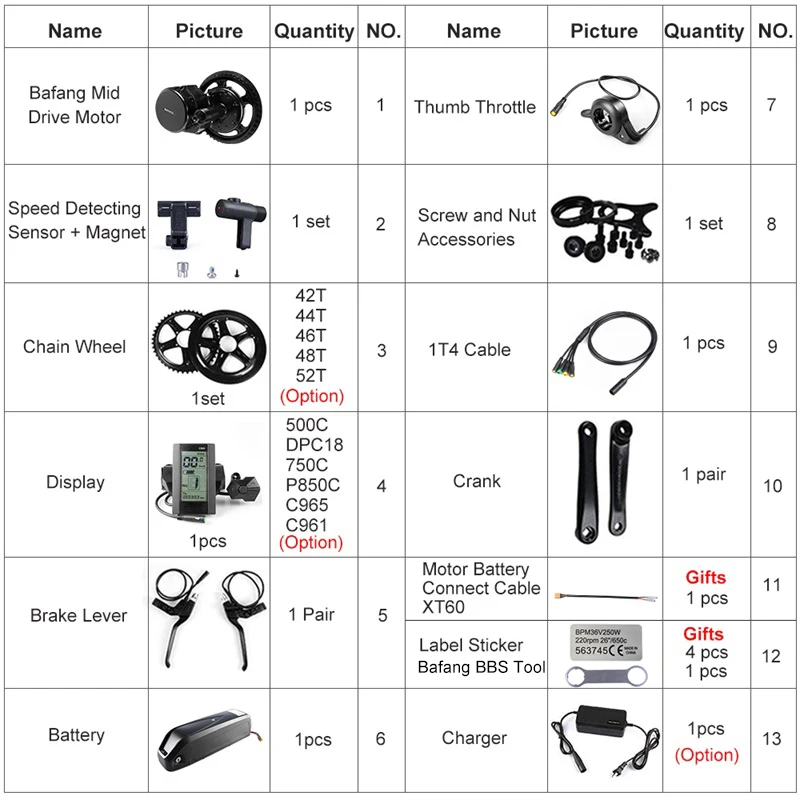

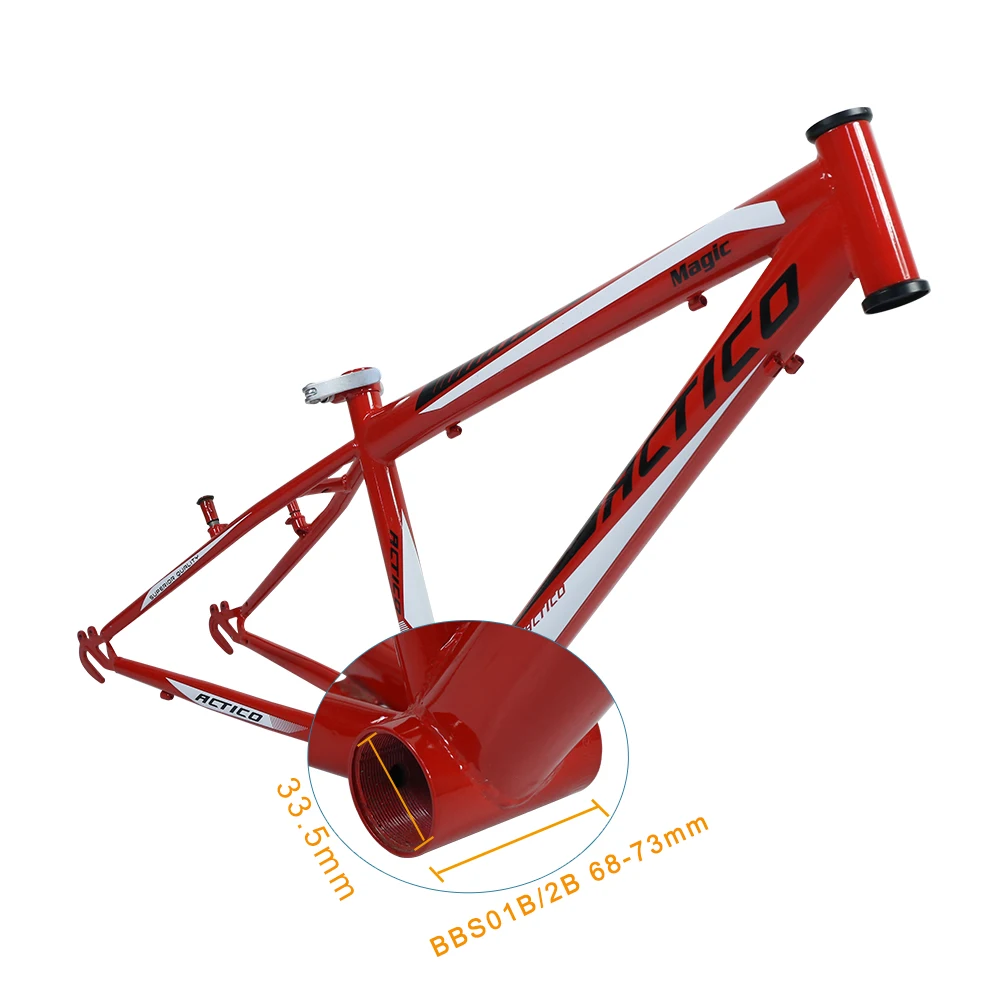

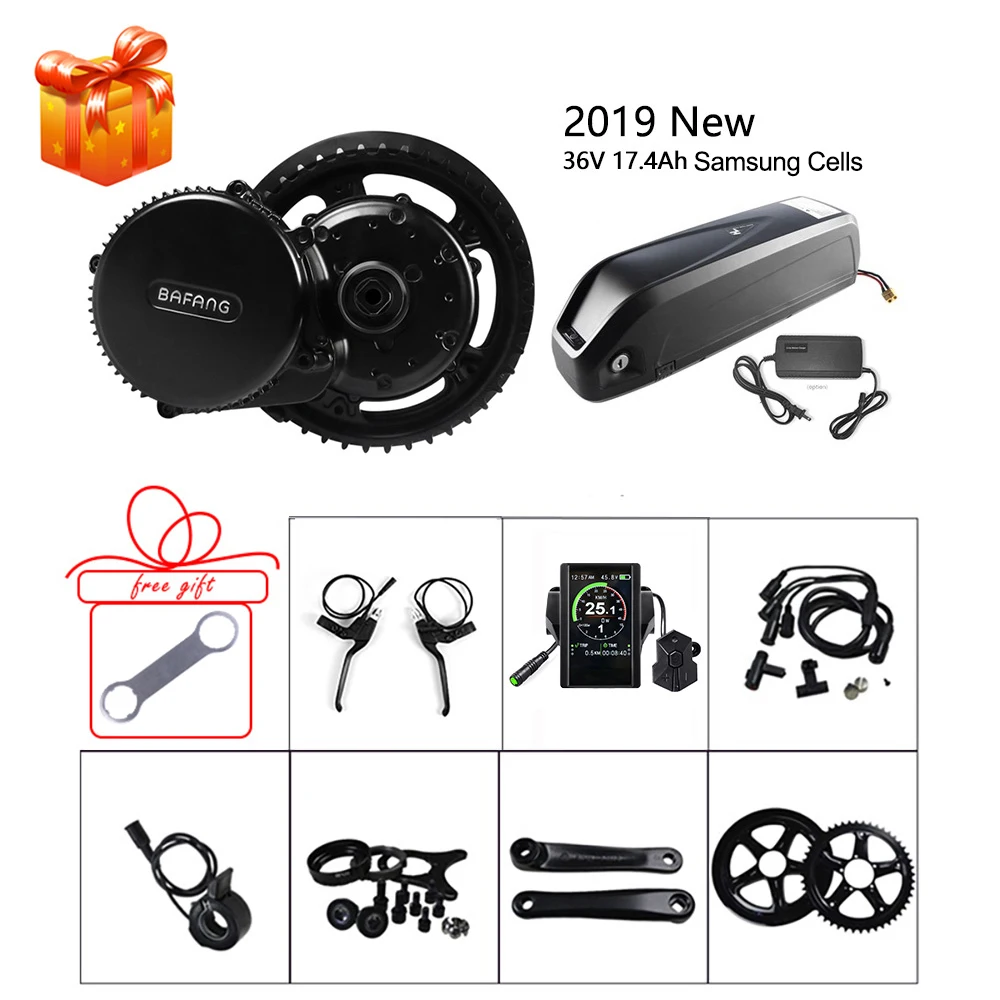

Purchase Note: This motor is fit for the Bike Bottom Brackets/BB is 68mm-73mm and the Inner Diamater of the bracket ( > 33.5mm) / should be not less than 33.5mm, please check carefully about your bicycle BB size. Motor Specification: Power:350W Voltage:36V Controller Current: 18A No Load Speed(RPM) :83-87 Load Speed(RPM):78-83 MAX Torque:100 N.m Efficiency: > 80% PAS SENSOR : Speed Sensor Reduction Ratio: 1 : 21.9 Centification:CE/EN 14764/ROHS Waterproof Grade:IP65 Motor Weight: 4.24kg Bracket bottom length:68mm Operation Temperature:-20-45℃ Speed within 20-25km/h can help you ride further Battery Specification: Nominal Voltage: 36V Nominal Capacity: 17.4Ah Cell Type: 17.4Ah Samsung Cell Cell Model: 18650 Cells Operating Charge Temperature:0～45℃ Operating Discharge Temperature:-20～60℃ StorageTemperature:-20～60℃ Overcurrent protecting:>25A Battery Range: Keep20-25Km/hspeed can riding about50kmwithout pedaling.(Driver weight 90kg ride on ordinaryroads no losing power.Ifmotor work with rider pedaling can riding about100km) Packing list: BBS01B 36V 350W Mid Drive Motor * 1 pcs Speed Detecting Sensor + Magnet * 1 set Display * 1 DPC18 750C P850C 500C C965 C961 SW102 850C Brake Lever * 1 Pair (We can change these to Hydraulic Brake Sensor for free,just leave me message ) Thumb Throttle * 1 pcs Screw and Nut Accessories * 1 set 1T4 Cable *1 pcs Crank* 1 pair 36V 17.4Ah Samsung Cells Battery And Charger * 1 set Gifts:XT60 Battery Connect Cable and Install Tools * 1 set Gaskets * 8 Pcs For Bottom Bracket 73mm Our Service: Each E-bike display four size chain wheel can choice,but system only give us 14 options showing,if you want to change chain wheel , change brake lever to hydraulic brake sensor or need other same price gifts remark on your order or leave me message both are ok,we will very pleasure to help you. Warranty :Our motor and Battery are one year.Other e-bikeparts is one month,maybe longer dueing toproblems. Overseas after-sales service station: Station in Netherland for EU , Station in Lac Vegas for US Canada. Message reply time : We will reply each clients message as soon as possible ,we will not let you wait too long. Advicefor rider:Please try not to ride too fast for your safty,don't let family and friends worryyou. About Tax: EU: If you need tax service please make order in TAX SERVICE 18 usd DDP SHIPPING SERVICE (Your TAX Will Paid By Us) Germany,France,Spain,Netherlands,Italy,Bulgaria,Belgium Bulgaria, Poland,Denmark,Finland,Portugal,Sweden,Slovakia,Slovenia,Greece,Hungary, Czech Republic ,Lithuania,Luxembourg,Romania,Ireland,Estonia, Austria Russian Federation,US,Canada,Ukraine,United Kingdom: TAX Service Include. Other Country:Your can remark Tax requirements on your order or leave me message. Recommended E-bike Accessories Warranty Aggrement: Motor Kits,warranty time 12 month except phycial damage and wrong operation. Battery,warranty time 12 month except phycial damage and wrong operation. Accessories,30 days except phycial damage and wrong operation Return & Refund: It is our pleasure to see customers have fun with our products, if you decide to return the items within 15 days after receipt,we will refund you, the return items must be in original conditions. Feedback: Your satisfaction and positive feedback is very important for us, it will be very kind of you to leave us 5 star feedback, if you have any problems, don`t hesitate tocontact us, we will do our best to serve with you. Thank you for your watching ; ) Netherlands Best Ebike Bafang 36V 350W Mid Motor With Lock Battery 17.4Ah E-Bike Samsung Cell BBS01B Kits For Electric Bicycle DIY Whole Parts 0
